Monday, September 21, 2015

Java TreeMap



Java TreeMap 源码解析
  • Comparable一般表示类的自然序,比如定义一个Student类,学号为默认排序
  • Comparator一般表示类在某种场合下的特殊分类,需要定制化排序。比如现在想按照Student类的age来排序
插入SortedMap中的key的类类都必须继承Comparable类(或指定一个comparator),这样才能确定如何比较(通过k1.compareTo(k2)comparator.compare(k1, k2))两个key,否则,在插入时,会报ClassCastException的异常。
此为,SortedMap中key的顺序性应该与equals方法保持一致。也就是说k1.compareTo(k2)comparator.compare(k1, k2)为true时,k1.equals(k2)也应该为true。
NavigableMap是JDK1.6新增的,在SortedMap的基础上,增加了一些“导航方法”(navigation methods)来返回与搜索目标最近的元素。例如下面这些方法:
  • lowerEntry,返回所有比给定Map.Entry小的元素
  • floorEntry,返回所有比给定Map.Entry小或相等的元素
  • ceilingEntry,返回所有比给定Map.Entry大或相等的元素
  • higherEntry,返回所有比给定Map.Entry大的元素

TreeMap是用红黑树作为基础实现的,红黑树是一种二叉搜索树

三叉搜索树在将问题规模减少三分之二时,所需比较操作的次数是两次(二叉搜索树再将问题规模减少一半时,只需要一次比较操作)
我们不能把这两次给忽略了,对于更一般的情况:
n个元素,K叉树搜索树需要的平均比较次数为k*log(n/k)
对于极端情况k=n时,K叉树就转化为了线性表了,复杂度也就是O(n)了,如果用数学角度来解这个问题,相当于:
n为固定值时,k取何值时,k*log(n/k)的取值最小?
k*log(n/k)根据对数的运算规则可以转化为ln(n)*k/ln(k)ln(n)为常数,所以相当于取k/ln(k)的极小值。这个问题对于大一刚学高数的人来说再简单不过了,我们这里直接看结果😊
当k=e时,k/ln(k)取最小值。
自然数e的取值大约为2.718左右,可以看到二叉树基本上就是这样最优解了

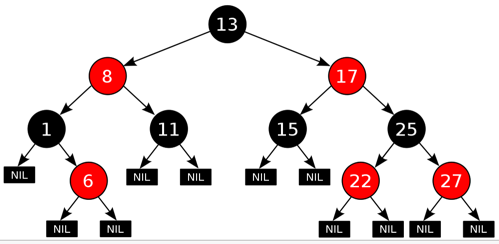

红黑树示例红黑树示例

上图是从wiki截来的,需要说明的一点是:
叶子节点为上图中的NIL节点,国内一些教材中没有这个NIL节点,我们在画图时有时也会省略这些NIL节点,但是我们需要明确,当我们说叶子节点时,指的就是这些NIL节点。
红黑树通过下面5条规则,保证了树是平衡的:
  1. 树的节点只有红与黑两种颜色
  2. 根节点为黑色的
  3. 叶子节点为黑色的
  4. 红色节点的字节点必定是黑色的
  5. 从任意一节点出发,到其后继的叶子节点的路径中,黑色节点的数目相同
满足了上面5个条件后,就能够保证:根节点到叶子节点的最长路径不会大于根节点到叶子最短路径的2倍
其实这个很好理解,主要是用了性质4与5,这里简单说下:
假设根节点到叶子节点最短的路径中,黑色节点数目为B,那么根据性质5,根节点到叶子节点的最长路径中,黑色节点数目也是B,最长的情况就是每两个黑色节点中间有个红色节点(也就是红黑相间的情况),所以红色节点最多为B-1个。这样就能证明上面的结论了。
Serialization
    private void writeObject(java.io.ObjectOutputStream s)
        throws java.io.IOException {
        // Write out the Comparator and any hidden stuff
        s.defaultWriteObject();

        // Write out size (number of Mappings)
        s.writeInt(size);

        // Write out keys and values (alternating)
        for (Iterator<Map.Entry<K,V>> i = entrySet().iterator(); i.hasNext(); ) {
            Map.Entry<K,V> e = i.next();
            s.writeObject(e.getKey());
            s.writeObject(e.getValue());
        }
    }

    /**
     * Reconstitute the {@code TreeMap} instance from a stream (i.e.,
     * deserialize it).
     */
    private void readObject(final java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
        // Read in the Comparator and any hidden stuff
        s.defaultReadObject();

        // Read in size
        int size = s.readInt();

        buildFromSorted(size, null, s, null);

    }
http://stackoverflow.com/questions/14923407/why-red-black-tree-based-implementation-for-java-treemap
Red-Black trees are more general purpose. The do relatively well on add, remove, and look-up but AVL trees have faster look-ups at the cost of slower add/remove. Java's general policy is to provide the best general purpose data structures.
Java uses quicksort for primitive objects as it is faster than merge sort in the average case . It uses merge sort for sorting objects as merge sort is a stable sorting algorithm.
http://daoluan.net/blog/category/%E6%95%B0%E6%8D%AE%E7%BB%93%E6%9E%84/

https://github.com/aorzecho/ds/blob/master/src/main/java/org/aorzecho/ds/java/util/TreeMap.java
final Entry<K,V> getIthEntry(Entry<K,V> entry, int i) {
  if (i > size || i<=0)
    throw new IndexOutOfBoundsException("Size is " + size
        + ", requested i=" + i + " out of bounds");
  int r = 1;
  if (entry.left != null)
    r += entry.left.size;
  if (i == r)
    return entry;
  else if (i < r)
    return getIthEntry(entry.left, i);
  else
    return getIthEntry(entry.right, i-r);

}

    static final class Entry<K,V> implements Map.Entry<K,V> {
        K key;
        V value;
        Entry<K,V> left = null;
        Entry<K,V> right = null;
        Entry<K,V> parent;
        boolean color = BLACK;
        int size = 1;
   }

https://kerflyn.wordpress.com/2011/05/20/how-treemap-can-save-your-day/
How to find a reservation from a given date
I group a set of reservations in a class that I’ve called Planning. Once instantiated, you can add reservations (method add()) and you can get a reservation at a given date (method getReservationAt()).
There are two steps to get a reservation close to a date.


  1. I first use the method floorEntry(). It gets you the map entry which key is the greatest one less than the given date.
  2. Second, I check if the reservation (that is the value of the entry) contains the given date.
public class Planning {
    public final TreeMap<Date, Reservation> reservations;
    public Planning() {
        reservations = new TreeMap<Date, Reservation>();
    }
    public void add(Reservation reservation) {
        reservations.put(reservation.from, reservation);
    }
    public Reservation getReservationAt(Date date) {
        Entry<Date, Reservation> entry = reservations.floorEntry(date);
        if (entry == null) {
            return null;
        }
        Reservation reservation = entry.getValue();
        if (!reservation.contains(date)) {
            return null;
        }
        return reservation;
    }
}
